CX450EPP-FBL-V2 - 450 Flybarless Electronic Parts Package V2

CopterX (CX450EPP-FBL-V2) 450 Flybarless Electronic Parts Package V2 .

MG-D-9257-V2 Specification:

• Wire: 25cm
• Operating Voltage: 4.8v ~ 6v
• Operating Speed: 0.09sec/60° (4.8V) / 0.08sec/60° (6.0V)
• Stall Torque: 2.2kg-cm (4.8V) / 2.4kg-cm (6.0V)
• Pulse width: 1520us
• Working Frequency: 333Hz
• Size: 36 x 15.2 x 29mm
• Weight: 25g

CX-3X1000 Features:

• Lightweight design will work with lightweight EP to large nitro helicopter
• CNC aluminum alloy casing for vibration free and durable operation
• Control by high performance micro processor for accurate control for all direction
• Easy to read LED indicator to indicate the operation of the gyro
• Highly tunable and will work with most popular servos on the market
• Build in one button setup for easy setup and operation
• Optional program box available for quick on spot detail fine tuning

CX-3X1000 Specification:

• Operating Voltage: DC 3.5V-9V
• Operating Current: 60mA
• Operating temperature: -10°C -50°C
• Maximum angular rate: 800 degrees / sec
• Support the rudder servo: 1.52ms analog servo, 1.52ms digital servos, 760us digital servos, 960us Digital Servo
• Support the swashplate servos: 1.52ms analog servo, 1.52ms digital servo
• Weight: 26g (including cable and plug)
• Dimension: 38.2*26.2*13mm.

CX-3X1000 Software

CX-ESC-40A Specification:

• Cont. current: 40A
• Burst current(>10s): 55A
• BEC mode: Linear
• BEC output: 5V / 3A
• BEC output capability: 5 servos (2S Lipo) / 4 servos (3S Lipo)
• Battery cell: 2-3S (Lipo) / 5-9 cells (NiMH)
• Weight: 39g
• Dimension: 68*25*8mm

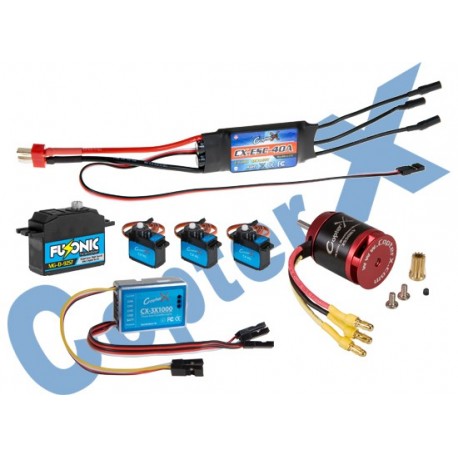

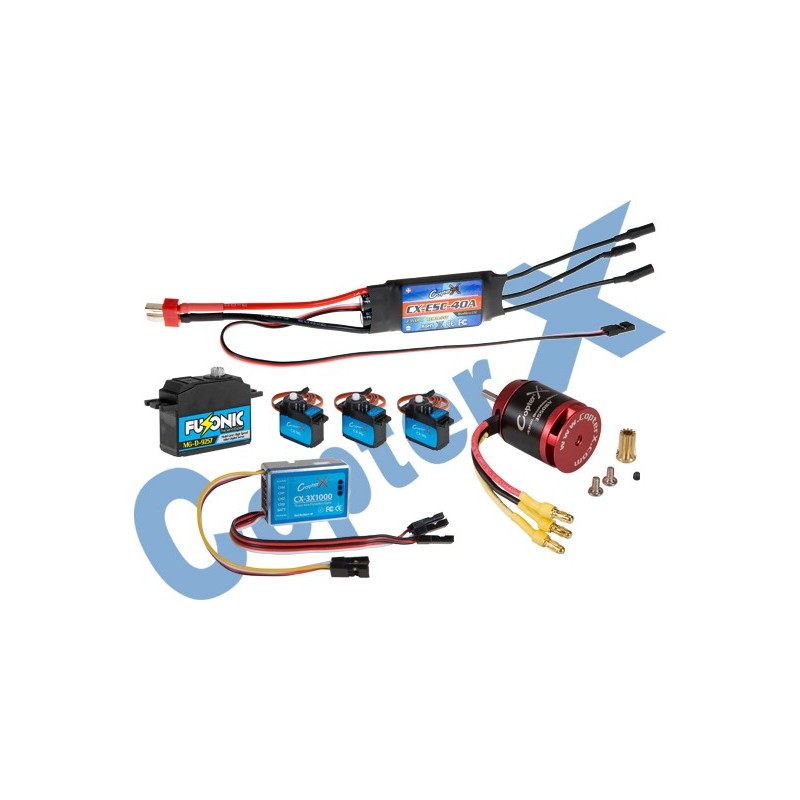

Package Included:

• CopterX (CX-9G) 9G Servo X 3
• Fusonic (MG-D-9257-V2) 9257 25g Metal Gear High Speed Mini Digital Servo X 1
• CopterX (CX-3X1000) Flybarless 3 Axis Gyro System X 1
• CopterX (CX-ESC-40A) 40A V2 Brushless Electronic Speed Controller X 1
• CopterX (CX450-10-04) 430XL Brushless Motor (3550KV) X 1
