CX500SEKIT - CopterX CX 500SE Kit Carbon Belt

CX500SEKIT - CopterX CX 500SE Kit Carbon Belt

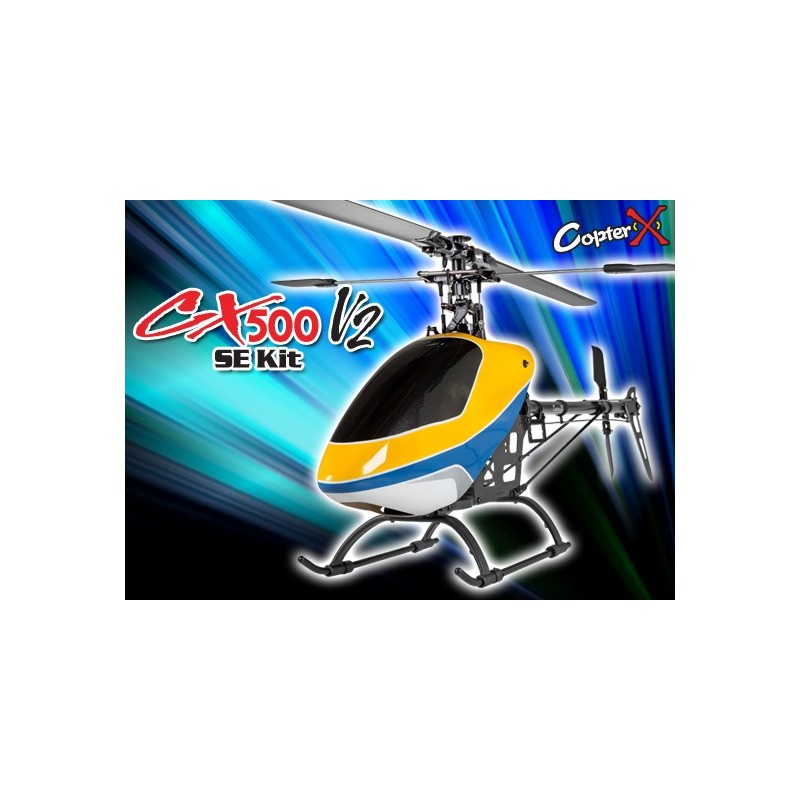

CX500SE kit is the top of the line model come complete with carbon fiber one piece frame, full aluminum alloy rotor head and tail assembly, no need for upgrades for this model. Assembly is very straight forward as the rotor head and tail come assembled already. The quality of parts are first class as the beautifully machined aluminum alloy rotor head, tail assembly, all anodized in black. And carbon fiber frame and boom support make CX500SE a truly desirable helicopter.

High precision full CNC main rotor assembly

Features:

* Simple and light weight design provides awesome flight performance and extreme 3D capability

* Rigid carbon fiber frame design

* Carbon fiber main blades at ultimate performance

* Carbon fiber stabilizer set

* Full Alu. main and tail rotor set

* Impact resistance factory painted canopy

* Rotor head/tail with thrust bearings

* Direct-to-swash CCPM linkage

* Tail rotor drive belt system

* Fully driven tail auto rotation system

* Alu tail servo boom mount

* Carbon fiber Tail Boom Brace

* Long composite battery mount for adjustable CG

* Fully ball raced for slope free operation

* New composite materials boom lock, gyro mount, battery mount to isolate vibration and increase performance

* New weight paddles for stable flight

* New heavy duty screws for easy maintenance and stronger structural strength

Specification:

* Length: 850mm

* Height: 310mm

* Main rotor: 970mm

* Tail rotor: 200mm

* Main Gear: 162T

* Autorotation Tail Drive: 145T

* Tail Drive gear: 31T

* Gear Ratio: 1:13.5:4.68

* Weight(without power system): 1030g

* All helicopter were setup and tested by skilled technican before delivery

* As 2.4Ghz technology do not require any frequency contorl. Makes this mode a lot safer to operate and don't have to worry about bringing the wrong crystal to the flying field

* Design for EXPERT pilot

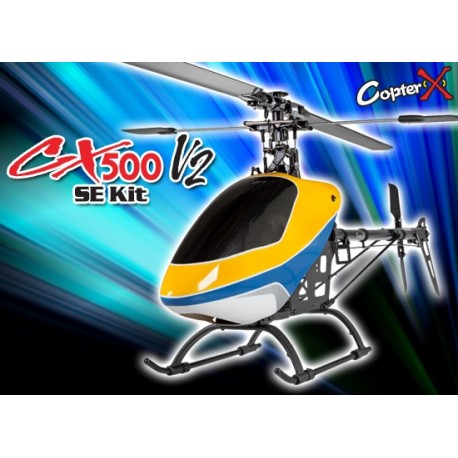

CopterX CX 500SE V2 Kit

CX500SE kit is the top of the line model come complete with carbon fiber one piece frame, full aluminum alloy rotor head and tail assembly, no need for upgrades for this model. Assembly is very straight forward as the rotor head and tail come assembled already. The quality of parts are first class as the beautifully machined aluminum alloy rotor head, tail assembly, all anodized in black. And carbon fiber frame and boom support make CX500SE a truly desirable helicopter.
