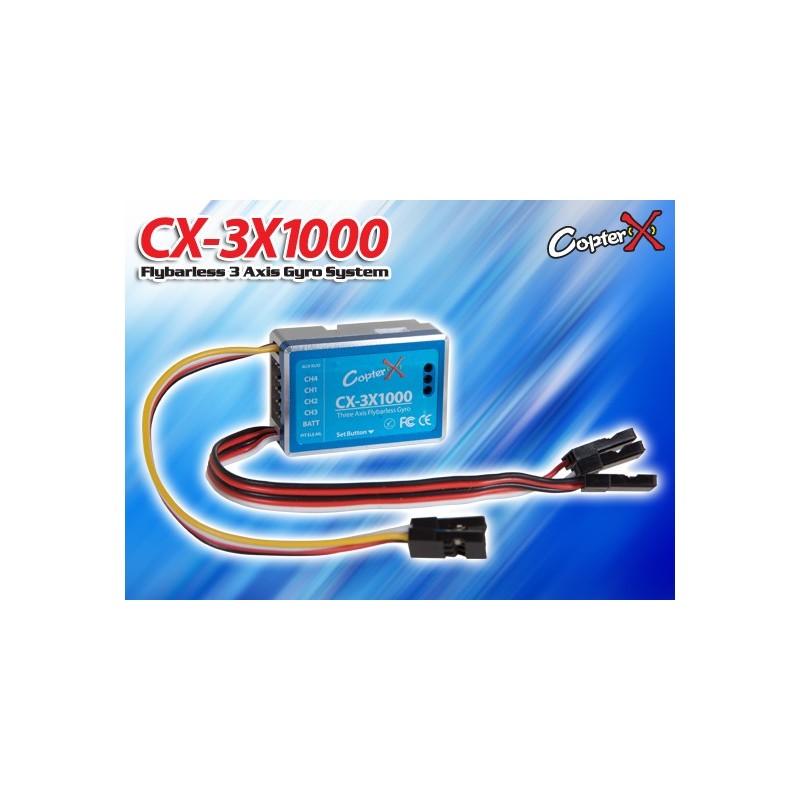

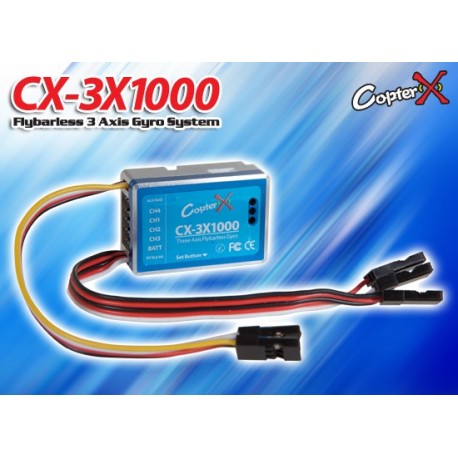

CX-3X1000 - Flybarless 3 Axis Gyro System

CopterX (CX-3X1000) Flybarless 3 Axis Gyro System

Features:

• Lightweight design will work with lightweight EP to large nitro helicopter
• CNC aluminum alloy casing for vibration free and durable operation
• Control by high performance micro processor for accurate control for all direction
• Easy to read LED indicator to indicate the operation of the gyro
• Highly tunable and will work with most popular servos on the market
• Build in one button setup for easy setup and operation
• Optional program box available for quick on spot detail fine tuning

Specification:

• Operating Voltage: DC 3.5V-9V
• Operating Current: 60mA
• Operating temperature: -10°C -50°C
• Maximum angular rate: 800 degrees / sec
• Support the rudder servo: 1.52ms analog servo, 1.52ms digital servos, 760us digital servos, 960us Digital Servo
• Support the swashplate servos: 1.52ms analog servo, 1.52ms digital servo
• Weight: 26g (including cable and plug)
• Dimension: 38.2*26.2*13mm

.

NOTE: not support CopterX (CX-CT6C) 2.4GHz 6CH Transmitter

Option :  CX-PB002 - Cable USB de programmation pour 3G Flybarless CX-3X1000
