MG-B6 - B6 Balance Charger and Discharger

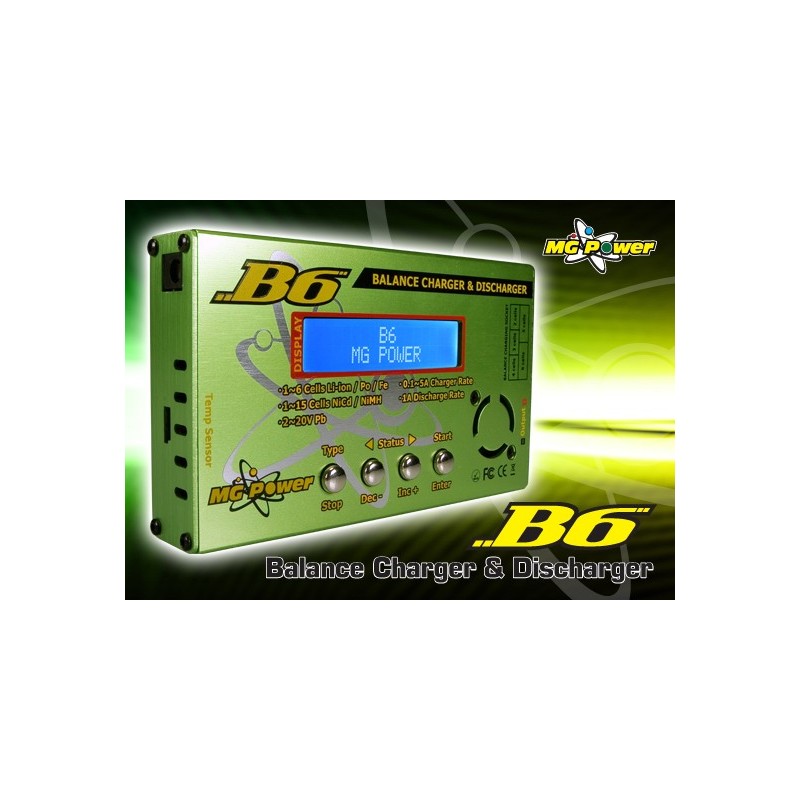

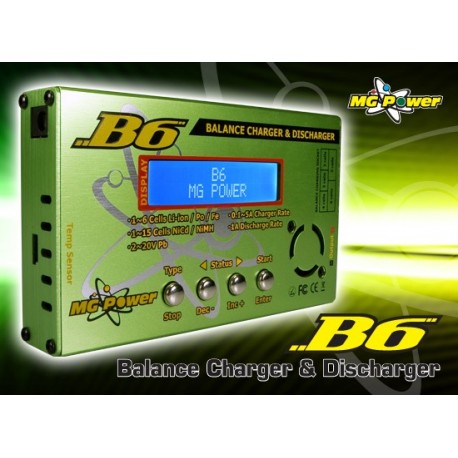

LCD screen and control buttons

MG Power B6 Balance Charger and Discharger

Features:

Optimized Operating Software: MG Power B6 features AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Internal Independent Lithium Battery Balancer: MG Power B6 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging

Balance Individual Cells Battery Discharging: During the process of discharging, MP Power B6 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal

Adaptable to Various Type of Lithium Battery: MP Power B6 is adaptable to various types of lithium batteries, such as Li-ion, Li-PO and the new Li-Fe series of batteries

Fast and Storage Mode of Lithium Battery: Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, 'store' function can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery

Maximum Safety: Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically

Automatic Charging Current Limit: You can set up the upper limit of the charging current when charging your Ni-Cd or Ni-MH battery; it is useful for the Ni-MH battery of low impedance and capacity in the 'AUTO' charging mode

Capacity Limit: The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value

Temperature Threshold*: The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. *This function is available by connecting optional temperature probe, which is not included in our package

Processing Time Limit: You can also limit the maximum process time to avoid any possible defect

Input Power Monitoring: To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically

Data Store / Load: The maximum five batteries's data can be stored for user's convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting

Cyclic Charging / Discharging: 1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity

Specification:

Operating voltage range: DC11.0 ~ 18.0 Volt / AC to DC adaptor (DC11.0 ~18.0V/5A)

Circuit power: Max. charge current 5A / Max. discharge current 1A

Charge current range: 0.1 ~ 5.0A

Discharge current range: 0.1 ~ 1.0A

Current drain for balancing Li-PO: 300mAh/cell

NiCd / NiMH battery cell count: 1 ~ 15cell

Li-ion / Polymer cell count: 1 ~ 6series

Pb battery voltage: 2V ~ 20V

Weight: 265g (Net weight)

Dimensions: 133.2 X 80.6 X 33mm

Package Included:

• MG Power B6 charger
• Charging cables for various battery
• Instruction manual
